SurfaceOutput

作者：追风剑情发布于：2016-4-20 9:56 分类：Shader

表面着色器(Surface Shader)的标准输出结构

struct SurfaceOutput {
    half3 Albedo;	         //反射率
    half3 Normal;	         //法线
    half3 Emission;	//自发光，用于增强物体自身的亮度，使之看起来好像可以自己发光
    half Specular;	         //镜面
    half Gloss;		//光泽
    half Alpha;		//透明
};

示例

// Unity built-in shader source. Copyright (c) 2016 Unity Technologies. MIT license (see license.txt)

Shader "Custom/SurfaceOutputTest" {
Properties {
	//用于调色的Color
    _Color ("Main Color", Color) = (1,1,1,1)
	//自发光
	_Emission ("Emission Color", Color) = (0.0, 0.0, 0.0, 0)
	//高光颜色
    _SpecColor ("Specular Color", Color) = (0.5, 0.5, 0.5, 0)
	//高光范围(值越小范围越大)
    _Shininess ("Shininess", Range (0.01, 1)) = 0.078125
	//主纹理
    _MainTex ("Base (RGB) TransGloss (A)", 2D) = "white" {}
	//法线贴图
    _BumpMap ("Normalmap", 2D) = "bump" {}
}

SubShader {
    Tags {"Queue"="Transparent" "IgnoreProjector"="True" "RenderType"="Transparent"}
    LOD 400

CGPROGRAM
#pragma surface surf BlinnPhong alpha:fade
#pragma target 3.0

sampler2D _MainTex;
sampler2D _BumpMap;
fixed4 _Color;
fixed4 _Emission;
half _Shininess;

struct Input {
    float2 uv_MainTex;
    float2 uv_BumpMap;
};

void surf (Input IN, inout SurfaceOutput o) {
    fixed4 tex = tex2D(_MainTex, IN.uv_MainTex);
    o.Albedo = tex.rgb * _Color.rgb;
	o.Alpha = tex.a * _Color.a;
    o.Gloss = tex.a; //光泽度(值越大高光越亮)
    o.Specular = _Shininess;
	o.Emission = _Emission.rgb;
    o.Normal = UnpackNormal(tex2D(_BumpMap, IN.uv_BumpMap));
}
ENDCG
}

FallBack "Legacy Shaders/Transparent/VertexLit"
}

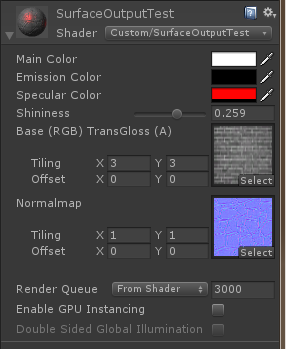

效果截图
