Visual Studio 2017配置OpenGL

作者：追风剑情发布于：2019-6-2 8:58 分类：OpenGL

参见 https://www.cnblogs.com/junjunjun123/p/8609159.html

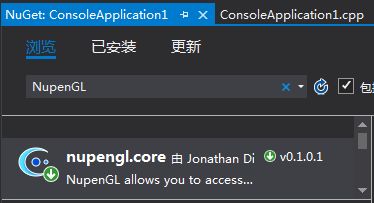

1、安装nupengl (此包集成了OpenGL、FreeGLUT、GLFW、GLEW)

2、运行测试代码

#include <windows.h>
#include <GL/gl.h>
#include <GL/glu.h>
#include <GL/glut.h>

#include <cstdlib>
#include <cstdio>
#include <cmath>

void display(void) {
	GLubyte fly[] = {
		0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
		0x03,0x80,0x01,0xC0,0x06,0xC0,0x03,0x60,
		0x04,0x60,0x06,0x20,0x04,0x30,0x0C,0x20,
		0x04,0x18,0x18,0x20,0x04,0x0C,0x30,0x20,

		0x04,0x06,0x60,0x20,0x04,0x03,0xC0,0x22,
		0x44,0x01,0x80,0x22,0x44,0x01,0x80,0x22,
		0x44,0x01,0x80,0x22,0x44,0x01,0x80,0x22,
		0x44,0x01,0x80,0x22,0x44,0x01,0x80,0x22,

		0x66,0x01,0x80,0x66,0x33,0x01,0x80,0xCC,
		0x19,0x81,0x81,0x98,0x0C,0xC1,0x83,0x30,
		0x07,0xe1,0x87,0xe0,0x03,0x3f,0xfc,0xc0,
		0x03,0x31,0x8c,0xc0,0x03,0x33,0xCC,0xC0,

		0x06,0x64,0x26,0x60,0x0c,0xcc,0x33,0x30,
		0x18,0xcc,0x33,0x18,0x10,0xc4,0x23,0x08,
		0x10,0x63,0xc6,0x08,0x10,0x30,0x0c,0x08,
		0x10,0x18,0x18,0x08,0x10,0x00,0x00,0x08,
	};

	GLubyte halftone[] = {
		0xAA,0xAA,0xAA,0xAA,0x55,0x55,0x55,0x55,
		0xAA,0xAA,0xAA,0xAA,0x55,0x55,0x55,0x55,
		0xAA,0xAA,0xAA,0xAA,0x55,0x55,0x55,0x55,
		0xAA,0xAA,0xAA,0xAA,0x55,0x55,0x55,0x55,
		0xAA,0xAA,0xAA,0xAA,0x55,0x55,0x55,0x55,
		0xAA,0xAA,0xAA,0xAA,0x55,0x55,0x55,0x55,
		0xAA,0xAA,0xAA,0xAA,0x55,0x55,0x55,0x55,
		0xAA,0xAA,0xAA,0xAA,0x55,0x55,0x55,0x55,
		0xAA,0xAA,0xAA,0xAA,0x55,0x55,0x55,0x55,
		0xAA,0xAA,0xAA,0xAA,0x55,0x55,0x55,0x55,
		0xAA,0xAA,0xAA,0xAA,0x55,0x55,0x55,0x55,
		0xAA,0xAA,0xAA,0xAA,0x55,0x55,0x55,0x55,
		0xAA,0xAA,0xAA,0xAA,0x55,0x55,0x55,0x55,
		0xAA,0xAA,0xAA,0xAA,0x55,0x55,0x55,0x55,
		0xAA,0xAA,0xAA,0xAA,0x55,0x55,0x55,0x55,
		0xAA,0xAA,0xAA,0xAA,0x55,0x55,0x55,0x55,
	};

	glClear(GL_COLOR_BUFFER_BIT);
	glColor3f(1.0, 1.0, 1.0);
	glRectf(25.0, 25.0, 125.0, 125.0);
	glEnable(GL_POLYGON_STIPPLE);
	glPolygonStipple(fly);
	glRectf(125.0, 25.0, 225.0, 125.0);
	glPolygonStipple(halftone);
	glRectf(225.0, 25.0, 325.0, 125.0);
	glDisable(GL_POLYGON_STIPPLE);
	glFlush();
}

void init(void) {
	glClearColor(0.0, 0.0, 0.0, 0.0);
	glShadeModel(GL_FLAT);
}

void reshape(int w, int h) {
	glViewport(0, 0, (GLsizei)w, (GLsizei)h);
	glMatrixMode(GL_PROJECTION);
	glLoadIdentity();
	gluOrtho2D(0.0, (GLdouble)w, 0.0, (GLdouble)h);
}

int main(int argc, char** argv) {
	glutInit(&argc, argv);
	glutInitDisplayMode(GLUT_SINGLE | GLUT_RGB);
	glutInitWindowSize(350, 150);
	glutCreateWindow(argv[0]);
	init();
	glutDisplayFunc(display);
	glutReshapeFunc(reshape);
	glutMainLoop();
	return 0;
}

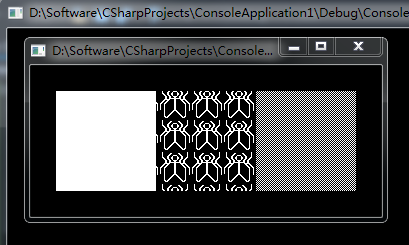

效果
